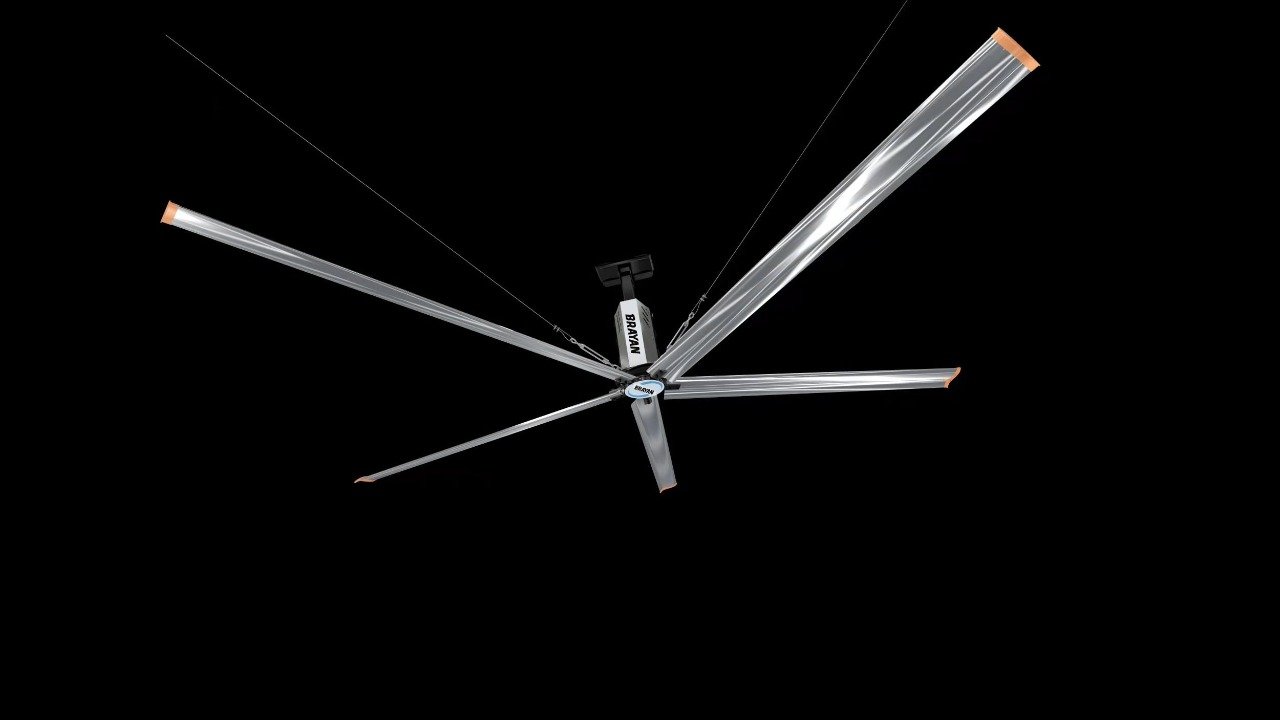

Bharat Brayan HVLS Fans
We would like to introduce one of our new technology ventilation system HVLS (High Volume Low Speed ) Fan, which is more comfortable, efficient & exceptional power saving. HVLS industrial ceiling fans are ideal for large commercial buildings, manufacturing facilities, processing and assembly plants, warehouses, big box stores, large dairy/poultry sheds, sports arenas, aircraft, hangars, or any other large indoor or outdoor facility.
HVLS FAN Features
- Ultra-large coverage up to 20000 sqft for clear space.
- All- Directional natural wind system.
- 12-15 years Service Life.
- Low noise when compared to traditional fan.
- Fan power starts from 0.15Kw to 1.5Kw and excellent energy saving.
- Modern, Scientific, Dynamic and Safe.
- Aesthetical, Artistic & free of maintenance.
- Reduction in operation expenditure.
- Capex saving upto 50% on new ventilation system
Eco breeze - Industrial power saver SERIES
Model No : BE-G24
- Diameter:-2.4m (08ft)
- Air Disp(@Max Speed):-510000 CMH
- Max Speed:-110RPM
- Fan Weight:-45kg
- Motor size:-1.1kw
- Full-Load Amps:-1.9A/380V
- Sound Level:- <40 dBA
Model No : BE-G36
- Diameter:-3.6m (12ft)
- Air Disp(@Max Speed):-621000 CMH
- Max Speed:-95RPM
- Fan Weight:-65kg
- Motor size:-1.1kw
- Full-Load Amps:-2.4A/380V
- Sound Level:-<40 dBA
Model No : BE-G49
- Diameter:-4.9m (16ft)
- Air Disp(@Max Speed):-675000 CMH
- Max Speed:-75RPM
- Fan Weight:-80kg
- Motor size:-1.5kw
- Full-Load Amps:-2.4A/380V
- Sound Level:-<40 dBA
Model No : BE-G61
- Diameter:-6.1m (20ft)
- Air Disp(@Max Speed):-729000 CMH
- Max Speed:-65RPM
- Fan Weight:-105kg
- Motor size:-1.5kw
- Full-Load Amps:-3.5A/380V
- Sound Level:-<40 dBA
Model No : BE-G73
- Diameter:-7.3m (24ft)
- Air Disp(@Max Speed):-783000 CMH
- Max Speed:-55RPM
- Fan Weight:-120kg
- Motor size:-1.5kw
- Full-Load Amps:-3.5A/380V
- Sound Level:-<40 dBA
PMSM/ BLDC Fans
Model No : BE-PM 24
- Diameter:-2.4m (08ft)
- Max Air Volume:-540000 CMH
- Speed:-10-140RPM
- Fan Weight:-32kg
- Motor Power:-0.5kw
- Input Voltage:-220V/1P
- Full Load Current:-2.2 A
- Noise Level:-<40 dBA
Model No : BE-PM 36
- Diameter:-3.6 m (12ft)
- Max Air Volume:-663000 CMH
- Speed:-10-100RPM
- Fan Weight:-45kg
- Motor Power:-0.6kw
- Input Voltage:-220V/1P
- Full Load Current:-2.7 A
- Noise Level:-<40 dBA
Model No : BE-PM 49
- Diameter:-4.9m (16ft)
- Max Air Volume:-723000 CMH
- Speed:-10-70RPM
- Fan Weight:-55kg
- Motor Power:-0.8kw
- Input Voltage:-220V/1P
- Full Load Current:-3.6 A
- Noise Level:-<40 dBA
Model No : BE-PM 61
- Diameter:-6.1m (20ft)
- Max Air Volume:-786000 CMH
- Speed:-10-55RPM
- Fan Weight:-75kg
- Motor Power:-1.0kw
- Input Voltage:-220V/1P
- Full Load Current:-4.5A
- Noise Level:-<40 dBA
Model No : BE-PM 73
- Diameter:-7.3m (24ft)
- Max Air Volume:-843600 CMH
- Speed:-10-55RPM
- Fan Weight:-80kg
- Motor Power:-1.2kw
- Input Voltage:-220V/1P
- Full Load Current:-5.4A
- Noise Level:-<40 dBA
